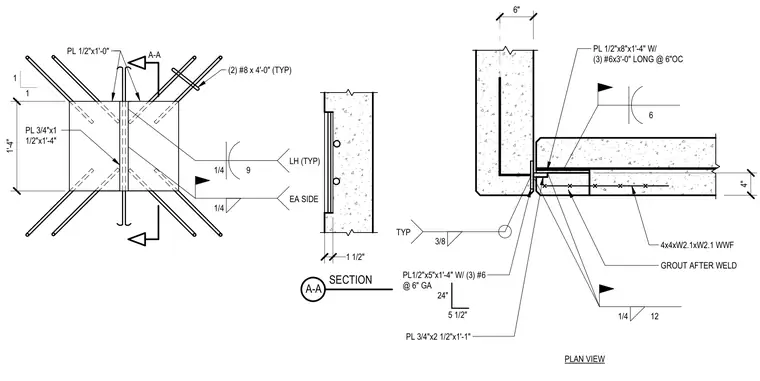

This concrete panel corner joint assembly features a 1/2-inch by 5-inch by 1-foot-4-inch embedded steel plate welded with a 3/8-inch typical fillet weld and tied with three number 6 reinforcing bars at 6-inch gauge spacing. Additional embedded plates measuring 1/2-inch by 8-inch by 1-foot-4-inch and 3/4-inch by 2-1/2-inch by 1-foot-1-inch anchor the corner configuration. Welded wire fabric of size 4x4-W2.1xW2.1 reinforces the concrete, which is grouted after welding is completed. Two number 8 reinforcing bars at 4 feet long provide additional structural tie-in at each side with 1/4-inch fillet welds.
4" 6" PL 1/2"x8"x1'-4" W/ (3) #6x3'-0" LONG @ 6"OC 6 4x4xW2.1xW2.1 WWF GROUT AFTER WELD 1/4 12 PL 3/4"x2 1/2"x1'-1" 5 1/2" 24" PL1/2"x5"x1'-4" W/ (3) #6 @ 6" GA 3/8 TYP PLAN VIEW 1'-4" PL 3/4"x1 1/2"x1'-4" PL 1/2"x1'-0" 1/4 EA SIDE (2) #8 x 4'-0" (TYP) 1/4 9 LH (TYP) A-A 1 1/2" SECTION A-A 1 1
