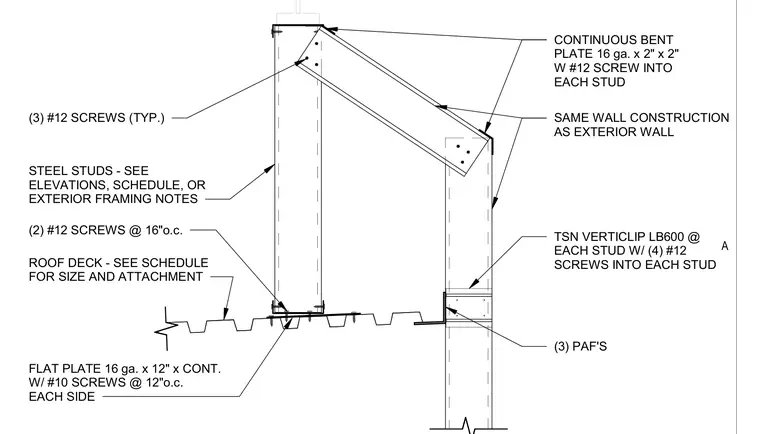

Steel studs frame the roof parapet assembly, anchored to the roof deck using powder-actuated fasteners and a continuous 16-gauge flat plate fastened with number 10 screws at 12 inches on center on each side. A TSN Verticlip LB600 secures the framing at the base of the parapet with four number 12 screws into each stud and three powder-actuated fasteners into the support below. The top of the parapet is capped with a continuous 16-gauge bent plate measuring 2 inches by 2 inches, secured with number 12 screws into each stud.
CONTINUOUS BENT PLATE 16 ga. x 2" x 2" W #12 SCREW INTO EACH STUD SAME WALL CONSTRUCTION AS EXTERIOR WALL TSN VERTICLIP LB600 @ EACH STUD W/ (4) #12 SCREWS INTO EACH STUD (3) PAF'S (3) #12 SCREWS (TYP.) STEEL STUDS - SEE ELEVATIONS, SCHEDULE, OR EXTERIOR FRAMING NOTES (2) #12 SCREWS @ 16"o.c. ROOF DECK - SEE SCHEDULE FOR SIZE AND ATTACHMENT FLAT PLATE 16 ga. x 12" x CONT. W/ #10 SCREWS @ 12"o.c. EACH SIDE A WSU NOORDA ENGINEERING BUILDING
