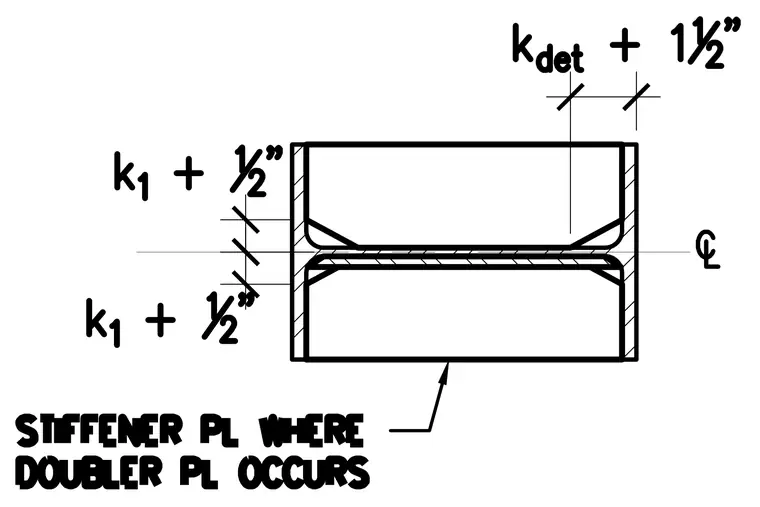

Column stiffener plates are positioned in relation to the doubler plate with specific detailing dimensions shown as k1 plus one-half inch and k det plus one-and-one-half inches. A note indicates stiffener plates are required where doubler plates occur. Centerline dimensions govern the placement of the stiffener plates relative to the structural shape geometry.
