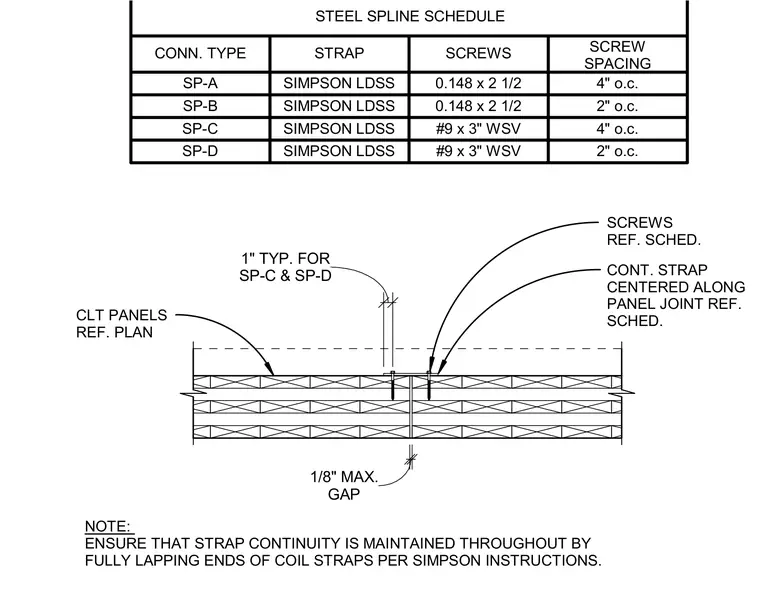

Cross-laminated timber panels abut with a maximum gap of one-eighth inch, joined across the joint by a continuous steel strap centered along the panel connection and sized per the steel spline schedule. The assembly utilizes Simpson LDSS or WSV screws spaced at four inches or two inches on center depending on the connection type. Strap continuity is maintained throughout by fully lapping ends of coil straps per manufacturer instructions.
GAP 1/8" MAX. CLT PANELS REF. PLAN CONT. STRAP CENTERED ALONG PANEL JOINT REF. SCHED. SCREWS REF. SCHED. STEEL SPLINE SCHEDULE CONN. TYPE SP-A NOTE: ENSURE THAT STRAP CONTINUITY IS MAINTAINED THROUGHOUT BY FULLY LAPPING ENDS OF COIL STRAPS PER SIMPSON INSTRUCTIONS. STRAP SIMPSON LDSS SCREWS 0.148 x 2 1/2 SCREW SPACING 4" o.c. SP-B SIMPSON LDSS 2" o.c. SP-C 4" o.c. SP-D 2" o.c. SP-C & SP-D 1" TYP. FOR SIMPSON LDSS SIMPSON LDSS #9 x 3" WSV #9 x 3" WSV 0.148 x 2 1/2
