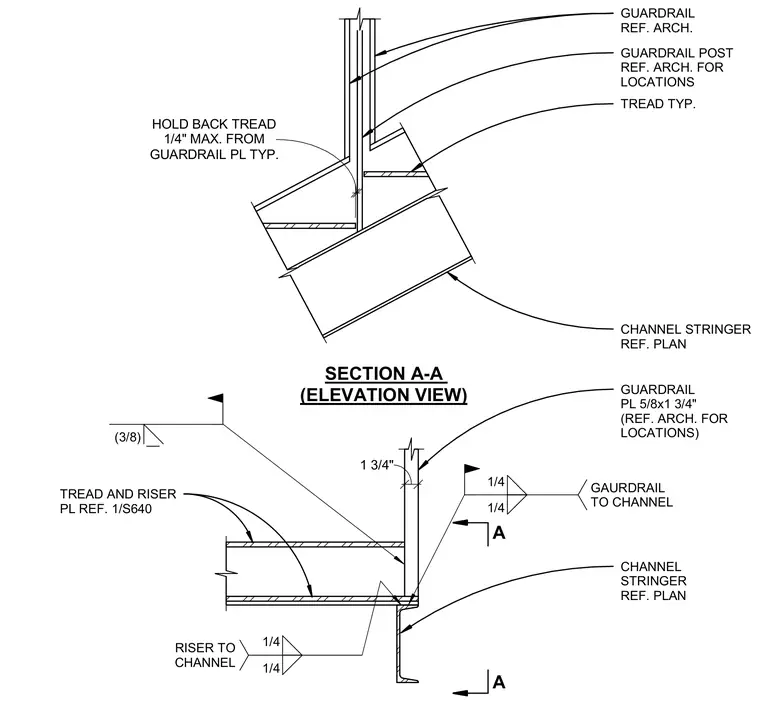

A guardrail post fabricated from a 5/8 inch by 1 3/4 inch plate connects to the stair stringer channel using 1/4 inch fillet welds. Tread and riser plates referenced on another sheet frame into the assembly, maintaining a maximum 1/4 inch clearance from the guardrail plate. The channel stringer is sized per plan, and stair tread details coordinate with architectural drawings.
GUARDRAIL PL TYP. HOLD BACK TREAD 1/4" MAX. FROM SECTION A-A (ELEVATION VIEW) GUARDRAIL REF. ARCH. GUARDRAIL POST REF. ARCH. FOR LOCATIONS TREAD TYP. CHANNEL STRINGER REF. PLAN A A 1 3/4" CHANNEL STRINGER REF. PLAN GUARDRAIL PL 5/8x1 3/4" (REF. ARCH. FOR LOCATIONS) TREAD AND RISER PL REF. 1/S640 (3/8) 1/4 1/4 GAURDRAIL TO CHANNEL 1/4 1/4 RISER TO CHANNEL
