A concrete housekeeping pad is placed over a structural slab-on-grade or composite metal deck slab with a minimum four-and-a-half-inch edge clearance. The pad requires a minimum reinforcing of two number four bars each way, with additional number four bars spaced at ten inches each way. The structural slab surface must be bonded or roughened if the pad is poured separately. When pad height is twelve inches or greater, additional number four bars are required for embedment depth. Anchor rods are installed as required by the equipment supplier.

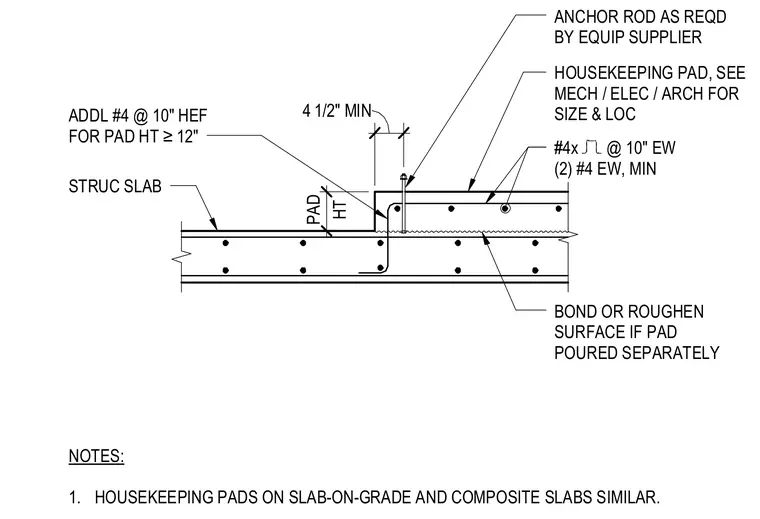

NOTES: 1. HOUSEKEEPING PADS ON SLAB-ON-GRADE AND COMPOSITE SLABS SIMILAR. 4 1/2" MIN BOND OR ROUGHEN SURFACE IF PAD POURED SEPARATELY #4x @ 10" EW (2) #4 EW, MIN HOUSEKEEPING PAD, SEE MECH / ELEC / ARCH FOR SIZE & LOC ANCHOR ROD AS REQD BY EQUIP SUPPLIER STRUC SLAB 6" PAD HT # ADDL #4 @ 10" HEF FOR PAD HT ≥12"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
