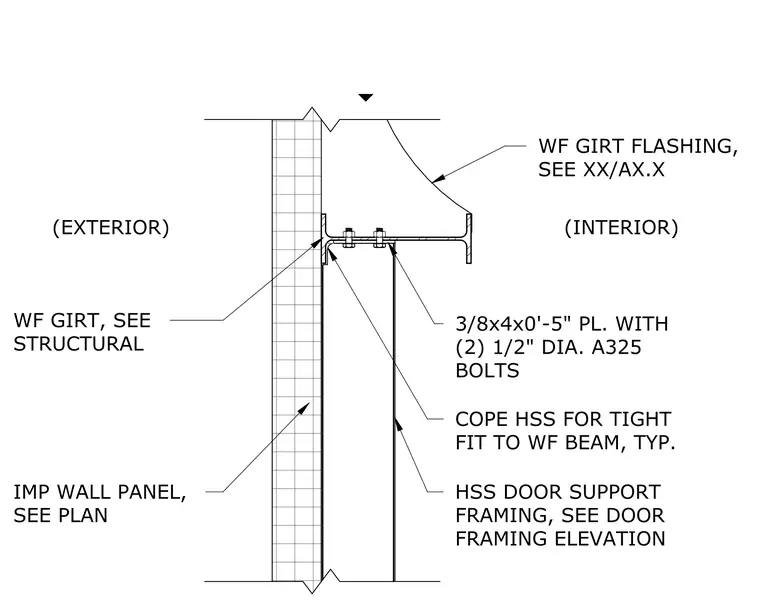

A hollow structural section door support member connects to a wide flange girt. The hollow structural section is coped for a tight fit against the wide flange beam and secured using a three-eighths inch by four inch by five inch steel plate fastened with two one-half inch diameter A325 bolts. The assembly is positioned adjacent to an insulated metal panel wall system. Wide flange girt flashing is referenced for installation at the exterior face.
Text on the drawing
WF GIRT FLASHING, SEE XX/AX.X 8 A5.2 SCALE: 1" = 1'-0" 8 DOOR FRAMING TO WF GIRT PLAN VIEW (EXTERIOR) (INTERIOR)
