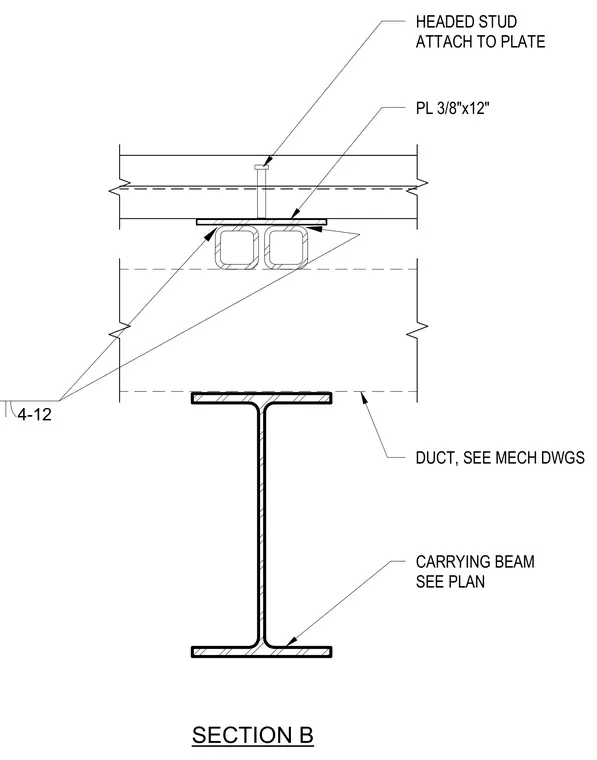

A structural steel carrying beam supports a suspended three-eighths-inch by twelve-inch steel plate via hollow structural section hangers. A headed stud is welded to the plate and extends upward. A mechanical duct passes through the assembly as detailed on the mechanical drawings.
HEADED STUD ATTACH TO PLATE DUCT, SEE MECH DWGS CARRYING BEAM SEE PLAN 4-12 PL 3/8"x12" SECTION B
