Structural · S-ZERAQ

Dunnage Platform Screenwall Framing and Corner Connection Detail

Materials

Steel

Elements

Columns Beams Arches Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

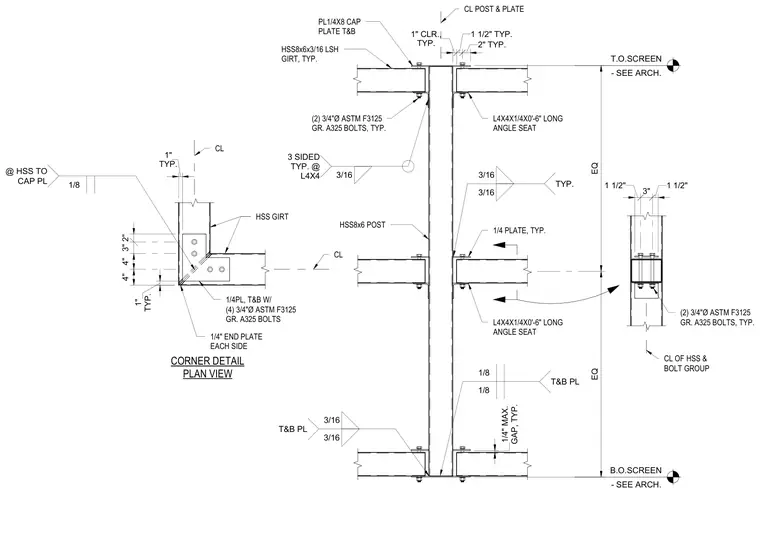

A dunnage platform screenwall framing assembly in plan view features an HSS8x6 post with framing girts. Horizontal support is provided by HSS8x6x3/16 girts connected via top and bottom 1/4-inch plates and L4x4x1/4 angle seats that are six inches long. The corner condition features a 1/4-inch end plate on each side fastened with four 3/4-inch diameter ASTM F3125 Grade A325 bolts. Fillet welds of 3/16-inch and 1/8-inch sizes secure the plate and angle connections across the assembly. Clearances and centerlines are dimensioned, including a 1/4-inch maximum gap.
