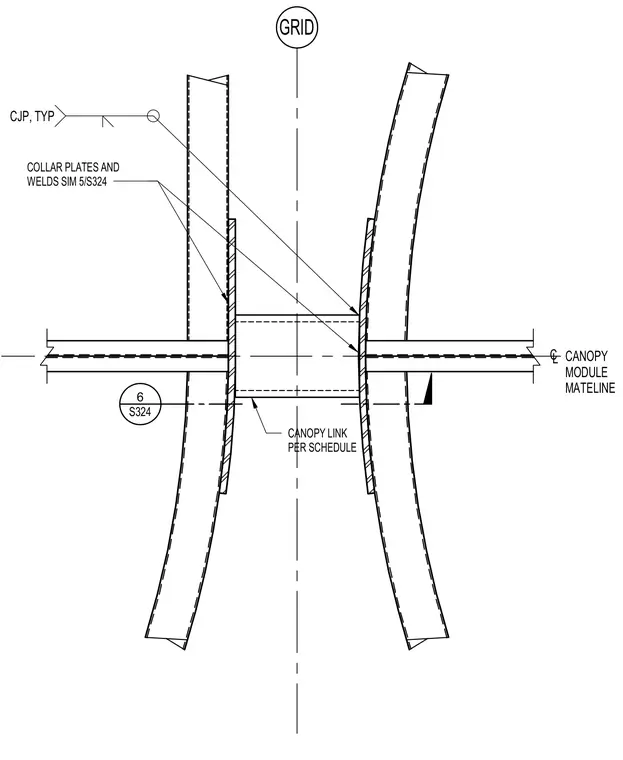

A canopy link connects adjacent canopy modules across a grid mateline, secured with collar plates and complete joint penetration welds. The connection aligns with the canopy module centerline and is sized per the structural schedule.
GRID C L CANOPY MODULE MATELINE CANOPY LINK PER SCHEDULE 6 S324 COLLAR PLATES AND WELDS SIM 5/S324 CJP, TYP
