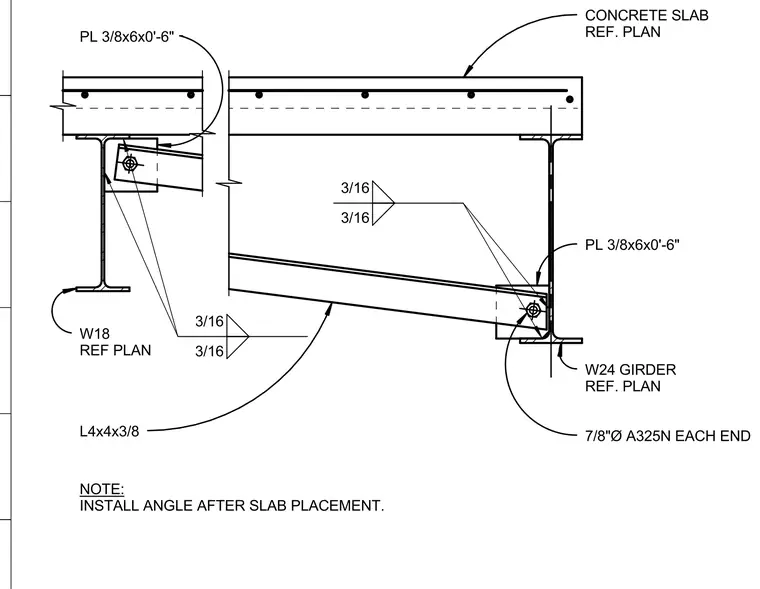

A braced frame kicker connection runs between a W18 beam and a W24 girder beneath a concrete slab. An L4x4x3/8 angle serves as the kicker, welded to 3/8-inch by 6-inch by 0-foot-6-inch plates with 3/16-inch fillet welds at each end. The connection is secured with 7/8-inch diameter A325-N bolts at each end. A note specifies that the angle must be installed after slab placement.
W24 GIRDER REF. PLAN W18 REF PLAN L4x4x3/8 NOTE: INSTALL ANGLE AFTER SLAB PLACEMENT. CONCRETE SLAB REF. PLAN PL 3/8x6x0'-6" PL 3/8x6x0'-6" 7/8"Ø A325N EACH END 3/16 3/16 3/16 3/16
