An eight-inch concrete wall bears on a concrete-filled steel deck supported by a steel beam sized per plan. Two five-eighths-inch diameter by two-foot-four-inch deformed bar anchors are spaced at five inches on center and centered on the perpendicular beam. Orientation and standard bolted connections are installed per plan.

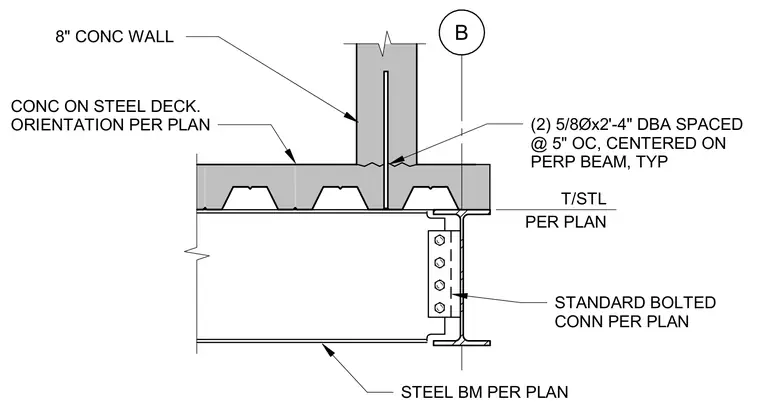

T/STL PER PLAN B STEEL BM PER PLAN (2) 5/8Øx2'-4" DBA SPACED @ 5" OC, CENTERED ON PERP BEAM, TYP 8" CONC WALL CONC ON STEEL DECK. ORIENTATION PER PLAN STANDARD BOLTED CONN PER PLAN
