Structural · S-ZEEH6

Composite Metal Deck Slab Edge and Step Conditions

Materials

Steel

Elements

Floors / Slabs Decks

Connections

Welded Connection Shear Stud / Composite Deck Attachment

About this detail

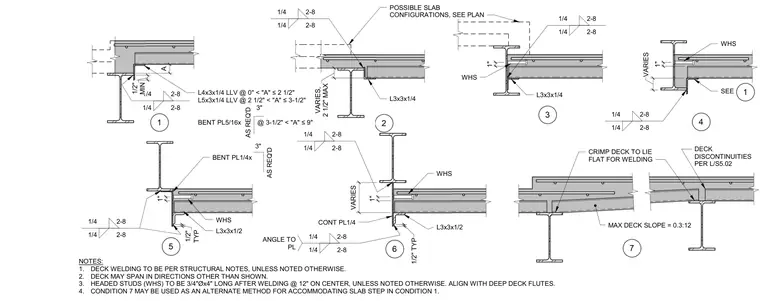

Structural steel framing conditions for composite metal deck slabs feature edge angles, slab steps, and beam connections. The details incorporate structural steel angles L3x3x1/4, L3x3x1/2, L4x3x1/4, and L5x3x1/4, bent plates of 1/4 inch and 5/16 inch thicknesses, and continuous plates welded to supporting steel beams. Headed studs measuring 3/4 inch in diameter by 4 inches long are spaced at 12 inches on center and aligned with deep deck flutes. Fillet welds of 1/4 inch size with 2-8 spacing are specified for angle-to-plate and deck connections. Notes address maximum deck slopes of 0.3:12, crimping deck to lie flat for welding, and slab step alternatives.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
