Structural · S-ZEEC8

Buckling Restrained Brace Connection at Steel Beam and Floor Deck

Materials

Concrete Metal (misc.)

Elements

Roofs Decks Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection

About this detail

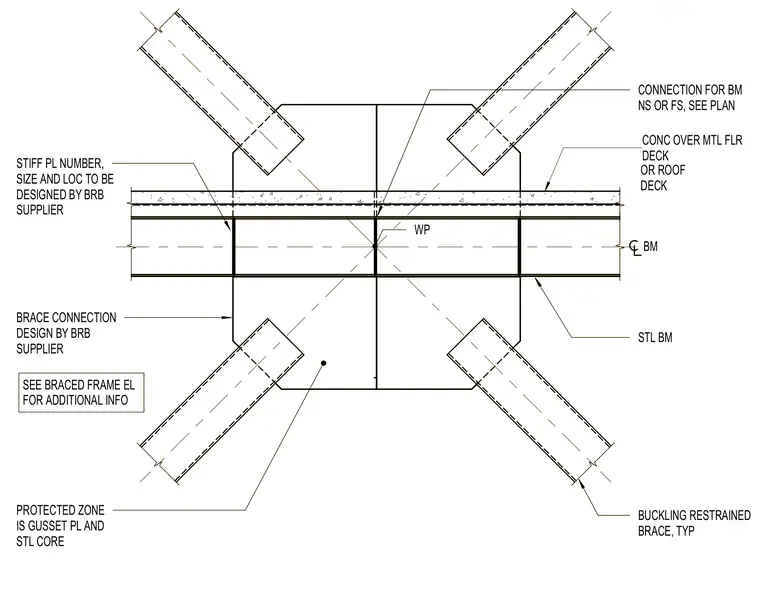

A buckling restrained brace connection frames into a steel beam beneath a concrete over metal floor or roof deck. Diagonal buckling restrained braces intersect at a work point on the steel beam, utilizing gusset plates and stiffener plates whose exact size, number, and location are designed by the buckling restrained brace supplier. The gusset plate and steel core serve as a protected zone. Additional connection information for near side or far side beam framing is coordinated per the structural plan, and braced frame elevations should be referenced for supplemental data.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
