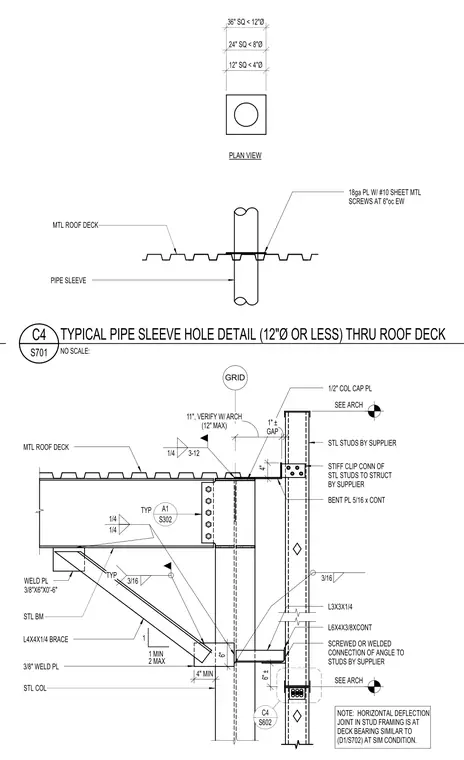

An eighteen-gauge plate secured with number ten sheet metal screws at six inches on center each way forms a pipe sleeve penetrating the metal roof deck. A structural steel column supports a steel beam with a one-half-inch column cap plate and a continuous bent plate measuring five-sixteenths of an inch. An L4x4x1/4 brace connects to a three-eighths-inch weld plate measuring six by six inches with a three-sixteenths-inch typical fillet weld. Cold-formed steel studs connect to the structural framing via stiff clip connections and continuous L6x4x3/8 and L3x3x1/4 angles. A horizontal deflection joint in the stud framing is located at the deck bearing.
PLAN VIEW PIPE SLEEVE 18ga PL W/ #10 SHEET MTL SCREWS AT 6"oc EW MTL ROOF DECK 12" SQ < 4"Ø 24" SQ < 8"Ø 36" SQ < 12"Ø STL COL STL BM MTL ROOF DECK BENT PL 5/16 x CONT 1/4 3-12 A1 S302 TYP 1/2" COL CAP PL 4" GRID (12" MAX) 11" , VERIFY W/ ARCH GAP 1" ± SEE ARCH SEE ARCH 6" ± 6" S602 C4 STL STUDS BY SUPPLIER STIFF CLIP CONN OF STL STUDS TO STRUCT BY SUPPLIER L4X4X1/4 BRACE 3/8" WELD PL 4" MIN WELD PL 3/8"X6"X0'-6" 1 1 MIN 2 MAX L6X4X3/8XCONT L3X3X1/4 SCREWED OR WELDED CONNECTION OF ANGLE TO STUDS BY SUPPLIER 1/4 1/4 3/16 TYP 3/16 NOTE: HORIZONTAL DEFLECTION JOINT IN STUD FRAMING IS AT DECK BEARING SIMILAR TO (D1/S702) AT SIM CONDITION. NO SCALE: S701 C4 TYPICAL PIPE SLEEVE HOLE DETAIL (12"Ø OR LESS) THRU ROOF DECK
