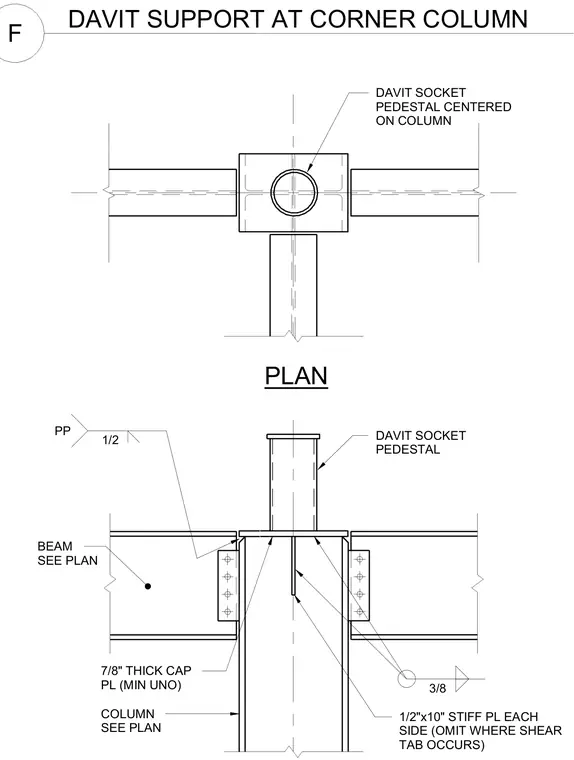

A davit socket pedestal is centered on a seven-eighths-inch thick column cap plate. A half-inch by ten-inch stiffener plate is welded to each side of the column, omitted where a shear tab occurs. Beams frame into the column using shear tabs connected with a half-inch fillet weld.
PLAN 7/8" THICK CAP PL (MIN UNO) COLUMN SEE PLAN BEAM SEE PLAN 1/2"x10" STIFF PL EACH SIDE (OMIT WHERE SHEAR TAB OCCURS) DAVIT SOCKET PEDESTAL DAVIT SOCKET PEDESTAL CENTERED ON COLUMN DAVIT SUPPORT AT CORNER COLUMN F 3/8 1/2 PP
