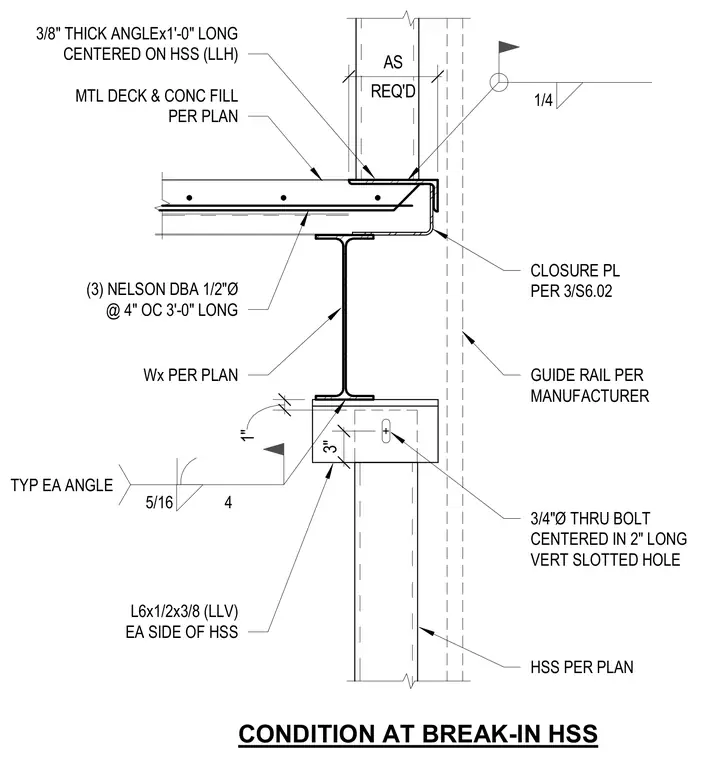

A hollow structural section column intersects a structural steel wide-flange beam supporting a metal deck and concrete fill. The structural steel beam carries three half-inch diameter Nelson deformed bar anchors spaced at four inches on center over a three-foot length. A three-eighths-inch thick angle one foot long is centered on the HSS horizontally, welded with a five-sixteenths fillet weld four inches long. Angle sections measuring six by one-half by three-eighths inches are placed on each side of the HSS vertically and secured with three-quarter-inch diameter through bolts centered in two-inch long vertical slotted holes. A closure plate sized per plan seals the assembly with a quarter-inch fillet weld, and a manufacturer-specified guide rail is positioned nearby.
CONDITION AT BREAK-IN HSS 1/4 5/16 4 TYP EA ANGLE CLOSURE PL PER 3/S6.02 GUIDE RAIL PER MANUFACTURER 3/4"Ø THRU BOLT CENTERED IN 2" LONG VERT SLOTTED HOLE HSS PER PLAN L6x1/2x3/8 (LLV) EA SIDE OF HSS Wx PER PLAN (3) NELSON DBA 1/2"Ø @ 4" OC 3'-0" LONG MTL DECK & CONC FILL PER PLAN 3/8" THICK ANGLEx1'-0" LONG CENTERED ON HSS (LLH) REQ'D AS 3" 1"
