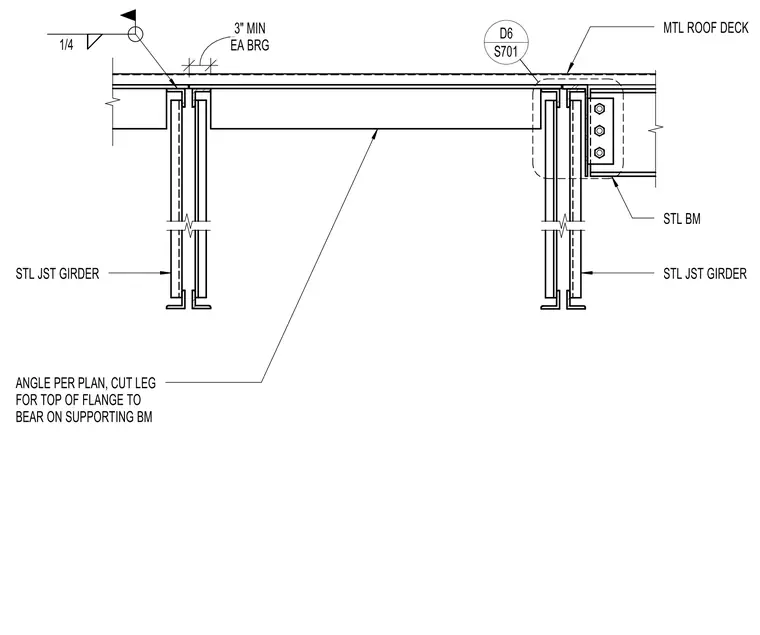

An angle brace spans between parallel steel joist girders with a cut leg allowing the top of the flange to bear on the supporting steel beam. A three-bolt connection ties the steel beam to the supporting member, with a minimum three-inch bearing required at each end. A quarter-inch fillet weld secures the assembly beneath the metal roof deck. Detail reference D6 on sheet S701 points to the connection condition at the deck level.
STL JST GIRDER STL BM STL JST GIRDER ANGLE PER PLAN, CUT LEG FOR TOP OF FLANGE TO BEAR ON SUPPORTING BM EA BRG 3" MIN MTL ROOF DECK 1/4 S701 D6
