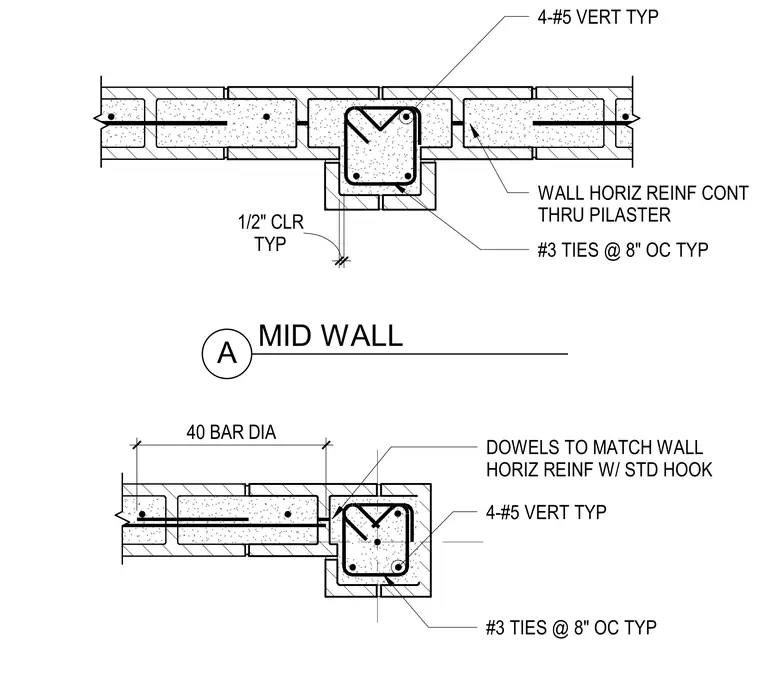

This structural detail shows concrete masonry unit wall pilaster configurations at mid-wall and corner conditions. The pilasters are reinforced with four number five vertical bars typically tied with number three ties spaced at eight inches on center. Wall horizontal reinforcement continues through the pilaster core, and dowels match the wall horizontal reinforcement with standard hooks. A forty bar diameter lap splice length is specified for horizontal reinforcing dowels.
A MID WALL 40 BAR DIA 4-#5 VERT TYP #3 TIES @ 8" OC TYP DOWELS TO MATCH WALL HORIZ REINF W/ STD HOOK 4-#5 VERT TYP #3 TIES @ 8" OC TYP TYP 1/2" CLR WALL HORIZ REINF CONT THRU PILASTER
