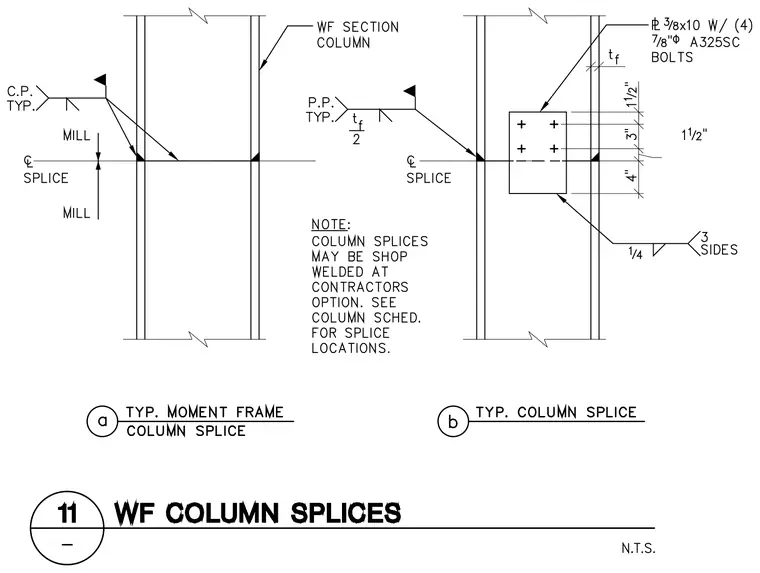

Two typical wide flange section column splice configurations are detailed. The first detail shows a complete joint penetration weld with backing at the flange, designated as C.P. typical with milled ends at the center line of the splice. The second detail shows a bolted flange plate connection utilizing a 3/8-inch by 10-inch plate with four 7/8-inch diameter A325-SC bolts, along with partial penetration welds and fillet welds on three sides. A note specifies that column splices may be shop welded at the contractor's option, with splice locations referenced in the column schedule.
