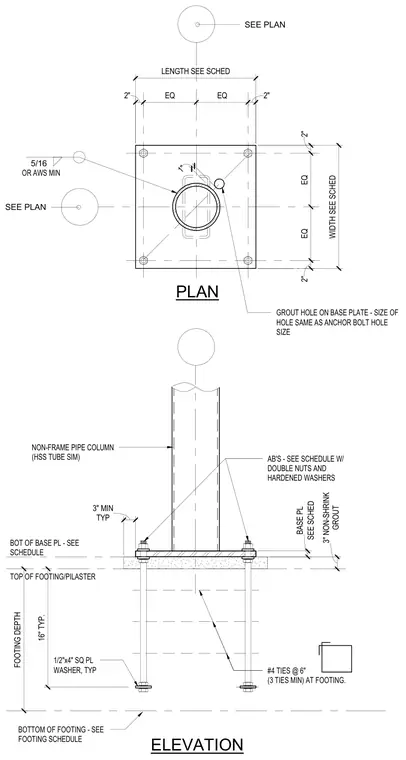

A non-frame pipe column or hollow structural section tube is welded to a square steel base plate resting on three inches of non-shrink grout above the concrete footing. Four anchor bolts with double nuts and hardened washers secure the base plate, featuring half-inch by four-inch square plate washers at their embedded lower ends. A grout hole matching the anchor bolt hole size is provided on the base plate per American Welding Society standards. The concrete footing incorporates a minimum of three number four ties spaced at six inches.
PLAN NON-FRAME PIPE COLUMN (HSS TUBE SIM) OR AWS MIN GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE 5/16 BOT OF BASE PL - SEE SCHEDULE TOP OF FOOTING/PILASTER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS ELEVATION BOTTOM OF FOOTING - SEE FOOTING SCHEDULE 1/2"x4" SQ PL WASHER, TYP #4 TIES @ 6" (3 TIES MIN) AT FOOTING. TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH 2" EQ EQ 2" LENGTH SEE SCHED 2" EQ EQ 2" WIDTH SEE SCHED 1" 16" TYP. SEE PLAN SEE PLAN
