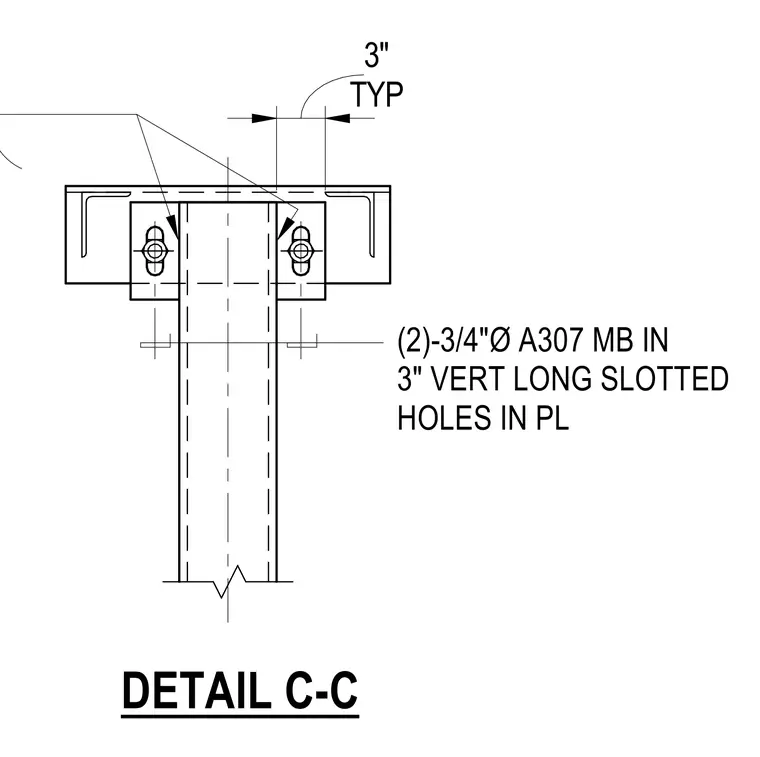

This structural connection utilizes two three-quarter-inch diameter ASTM A307 machine bolts installed within three-inch vertical long slotted holes in steel plates. The slotted hole configuration permits vertical movement and accommodates differential thermal expansion or deflection. Typical three-inch spacing dimensions are established across the connection assembly.
DETAIL C-C (2)-3/4"Ø A307 MB IN 3" VERT LONG SLOTTED HOLES IN PL TYP 3" DETAIL C-C (2)-3/4"Ø A307 MB IN 3" VERT LONG SLOTTED HOLES IN PL TYP 3"
