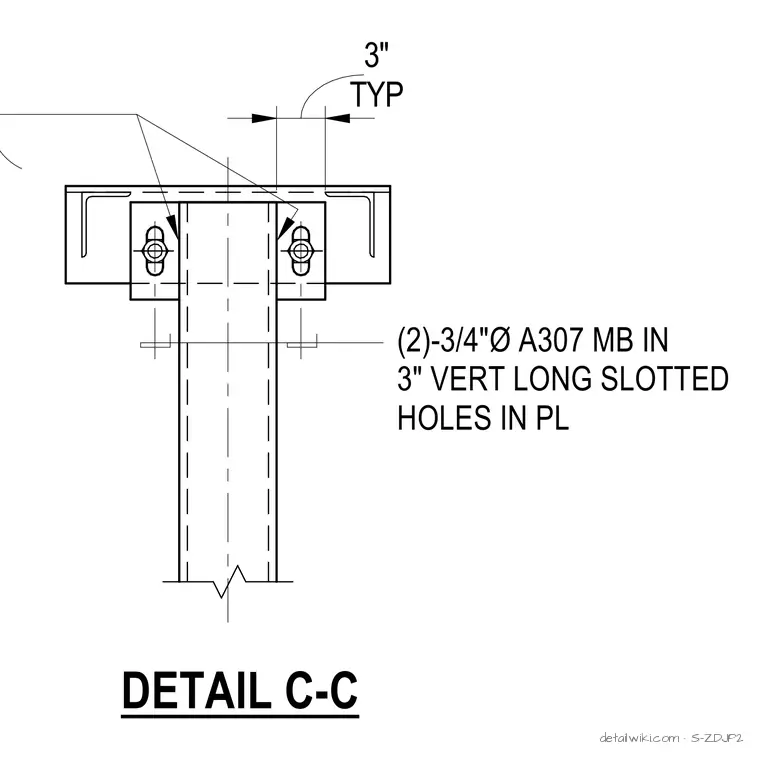

The assembly features a steel member connected with two 3/4-inch diameter A307 machine bolts placed in 3-inch vertical long slotted holes within a plate. This configuration permits controlled vertical movement and thermal expansion between the connected steel elements while maintaining structural engagement.
Text on the drawing
DETAIL C-C (2)-3/4"Ø A307 MB IN 3" VERT LONG SLOTTED HOLES IN PL TYP 3" DETAIL C-C (2)-3/4"Ø A307 MB IN 3" VERT LONG SLOTTED HOLES IN PL TYP 3"
