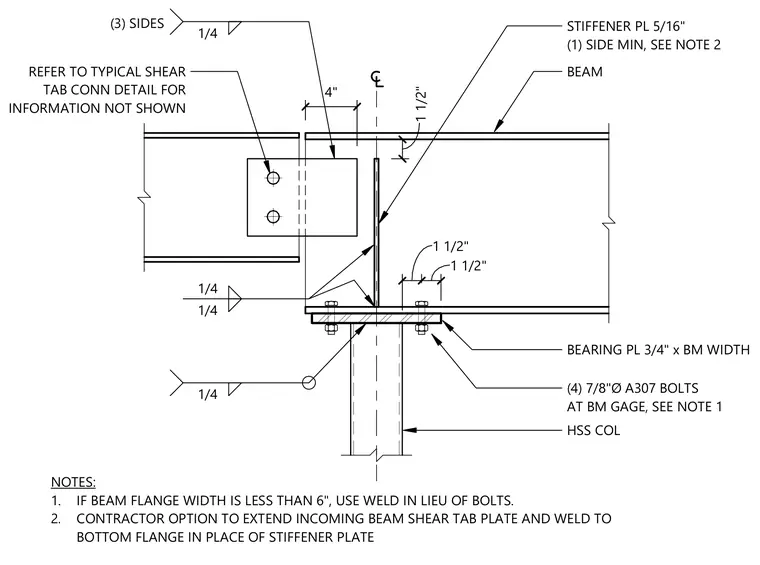

A steel beam is supported over a hollow structural section column. The beam bears onto a three-quarter-inch by beam-width bearing plate connected to the column cap with four seven-eighth-inch diameter A307 bolts at the beam gauge. A five-sixteenth-inch stiffener plate is welded to the column with quarter-inch welds on three sides, providing web stiffening. An incoming beam connects via a shear tab, leaving a four-inch clearance to the column centerline. A note permits the contractor to extend the incoming beam shear tab plate and weld it to the bottom flange in lieu of the stiffener plate, while another note specifies using a weld instead of bolts if the beam flange width is less than six inches.
STIFFENER PL 5/16" (1) SIDE MIN, SEE NOTE 2 NOTES: 1. IF BEAM FLANGE WIDTH IS LESS THAN 6", USE WELD IN LIEU OF BOLTS. 2. CONTRACTOR OPTION TO EXTEND INCOMING BEAM SHEAR TAB PLATE AND WELD TO BOTTOM FLANGE IN PLACE OF STIFFENER PLATE 1 1/2" 1 1/2" BEARING PL 3/4" x BM WIDTH (4) 7/8"Ø A307 BOLTS AT BM GAGE, SEE NOTE 1 HSS COL 1/4 1/4 1/4 1/4 (3) SIDES REFER TO TYPICAL SHEAR TAB CONN DETAIL FOR INFORMATION NOT SHOWN 1 1/2" 4" BEAM
