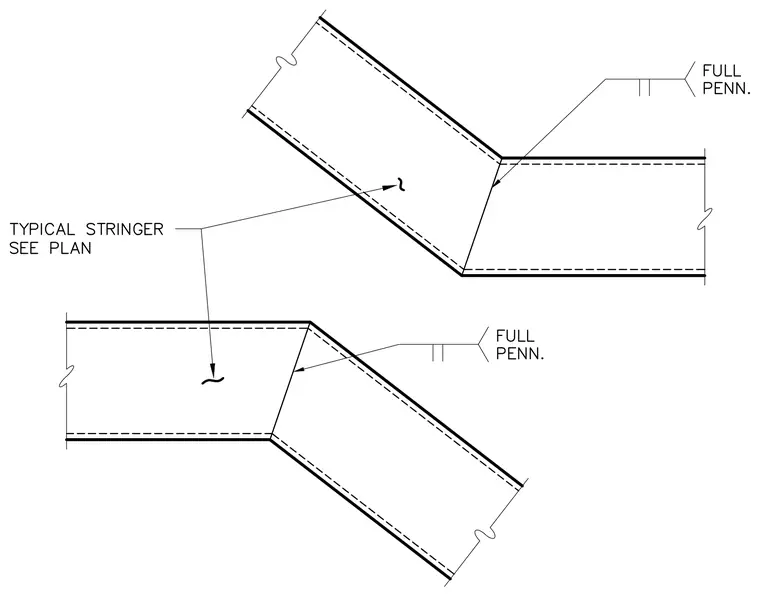

Two stair stringers meet at an angled change in direction, joined with a full penetration weld at the mitered interface. The stringer profile is sized per plan, with continuous flanges and webs meeting at the miter cut. Full penetration welds develop the full strength of the structural steel section across the joint.
