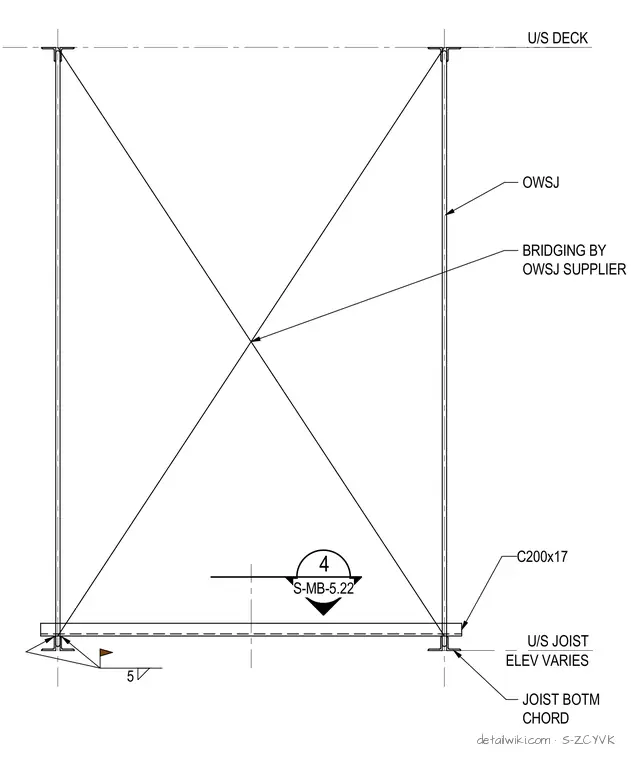

The assembly features two open web steel joists positioned vertically, tied together with diagonal cross-bracing and bridging supplied by the OWSJ manufacturer. A C200x17 channel section runs horizontally across the bottom, intersecting the joist bottom chords below the underside of the deck. The detail includes weld symbols and a reference callout to another detail drawing.
Text on the drawing
U/S JOIST ELEV VARIES U/S DECK 5 JOIST BOTM CHORD OWSJ 4 S-MB-5.22 BRIDGING BY OWSJ SUPPLIER C200x17
