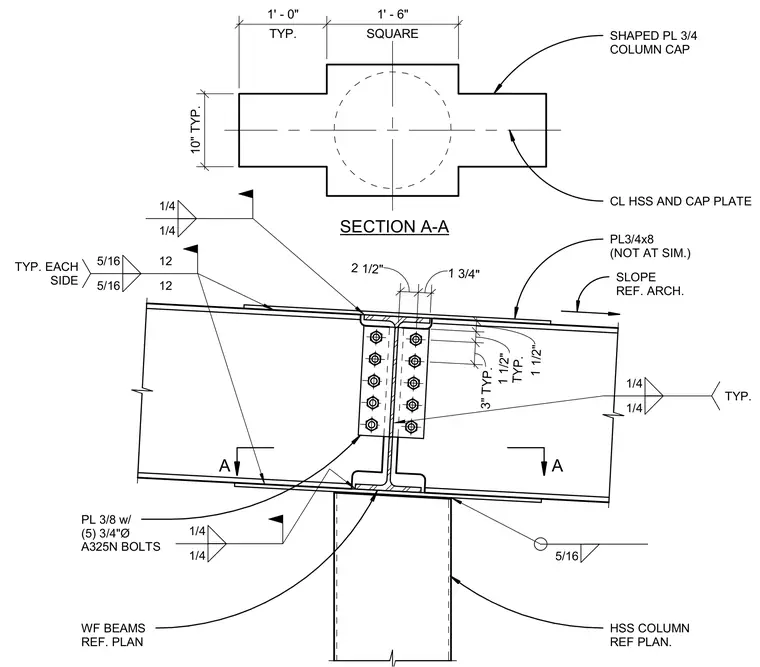

Wide-flange beams bear on a hollow structural section column capped with a three-quarter-inch shaped plate welded with five-sixteenth-inch fillets. The beams connect back-to-back across the column centerline using a three-eighth-inch plate fastened with five three-quarter-inch-diameter ASTM A325N bolts per side. Additional three-quarter-inch by eight-inch plates weld to the top flanges with quarter-inch fillets typical on each side, while beam webs receive five-sixteenth-inch welds at twelve-inch spacings. The canopy beams slope relative to architectural requirements.
TYP. 1' - 0" SQUARE 1' - 6" 10" TYP. SHAPED PL 3/4 COLUMN CAP CL HSS AND CAP PLATE PL3/4x8 (NOT AT SIM.) WF BEAMS REF. PLAN HSS COLUMN REF PLAN. 5/16 5/16 12 5/16 12 TYP. EACH SIDE 1/4 1/4 1/4 1/4 SECTION A-A A A SLOPE REF. ARCH. PL 3/8 w/ (5) 3/4"Ø A325N BOLTS 1/4 1/4 TYP. 1 3/4" 2 1/2" 1 1/2" TYP. 1 1/2" 3" TYP.
