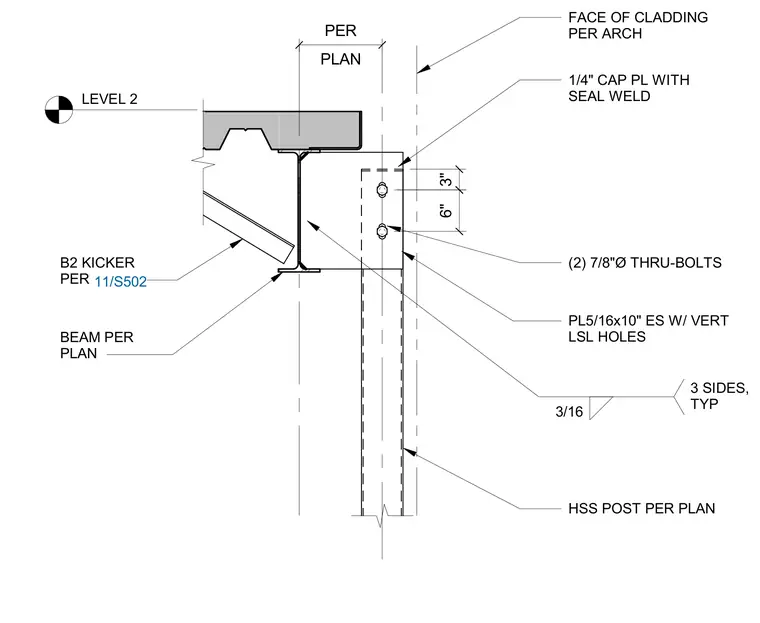

A hollow structural section post connects to a structural steel beam below a Level 2 floor slab and metal deck. The top of the HSS post is capped with a one-quarter-inch thick plate secured with a seal weld on three sides. The beam attaches to the post using a five-sixteenth by ten-inch plate each side with vertical slotted holes, fastened with two seven-eighth-inch diameter through-bolts spaced six inches apart. A kicker brace angled at the underside of the beam provides additional lateral support.
LEVEL 2 FACE OF CLADDING PER ARCH HSS POST PER PLAN PLAN PER B2 KICKER PER BEAM PER PLAN 1/4" CAP PL WITH SEAL WELD 6" (2) 7/8"Ø THRU-BOLTS PL5/16x10" ES W/ VERT LSL HOLES 3" 3/16 3 SIDES, TYP 11/S502
