Structural · S-ZCPB5

Grade Beam and Pile Cap Tie Bar Connection

Materials

Concrete Steel

Elements

Columns Beams Floors / Slabs Foundations / Footings Anchors / Embeds Connections / Plates Reinforcing

Connections

Braced Frame Connection Rebar Splice / Development Embed Plate

About this detail

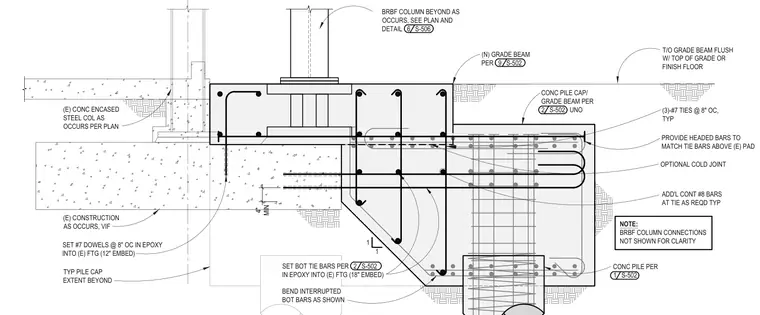

A new grade beam, a concrete pile cap, and an existing concrete footing connect in this structural assembly, featuring epoxy-set number 7 dowels with a twelve-inch embedment into the existing footing, alongside number 7 bottom tie bars with an eighteen-inch embedment. Interrupted bottom bars are bent as shown, and additional continuous number 8 bars are provided at ties as required. The new grade beam is positioned flush with the top of grade or finish floor, incorporating three number 7 ties at eight inches on center. Headed bars match tie bars above the existing pad, and an optional cold joint is designated at the interface.
