Structural · S-ZCHDF

Beam to Column Connection to Flange

Materials

Steel

Elements

Columns Beams Roofs Decks Connections / Plates

Connections

Shear Tab / Single Plate HSS Connection Beam-to-Column

About this detail

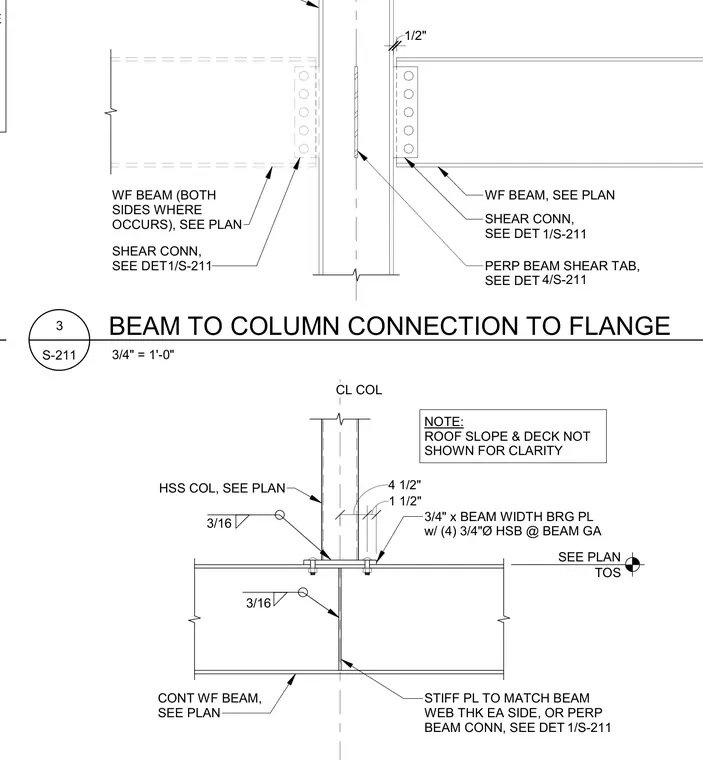

A wide-flange beam connection frames into the flange of a hollow structural section column. The assembly features a three-quarter inch bearing plate matching the beam width, fastened with four three-quarter inch diameter high-strength bolts, welded with three-sixteenth inch fillet welds. Stiffener plates matching the beam web thickness are provided on each side or perpendicular to the beam connection. Shear connections at the beam web are detailed elsewhere in the structural drawing set. Roof slope and deck are omitted for clarity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
