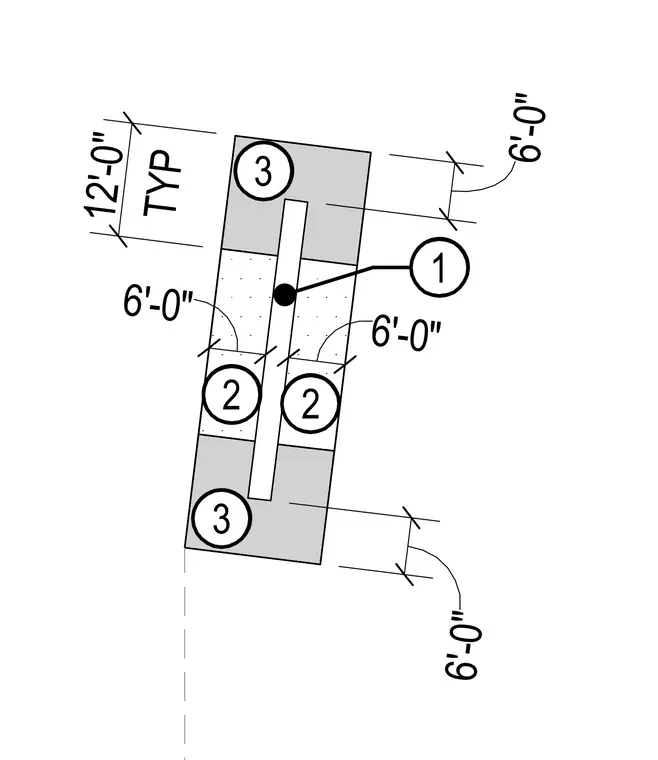

A pile cap configuration features dimensioned spacing and numbered reference tags. Pier spacing is set at twelve feet typical along the primary axis, with six-foot edge dimensions. Numbered callouts identify specific foundation elements and reference locations within the structural layout.
