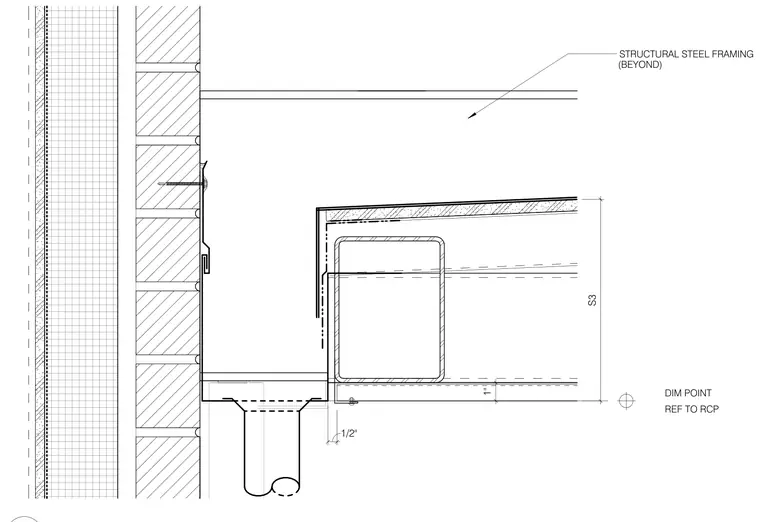

A roof terrace canopy gutter assembly interfaces with exterior wall construction and structural steel framing shown beyond. Dimension points reference the reflected ceiling plan for alignment. Clearance dimensions of one-half inch and one inch coordinate framing and drainage integration.
