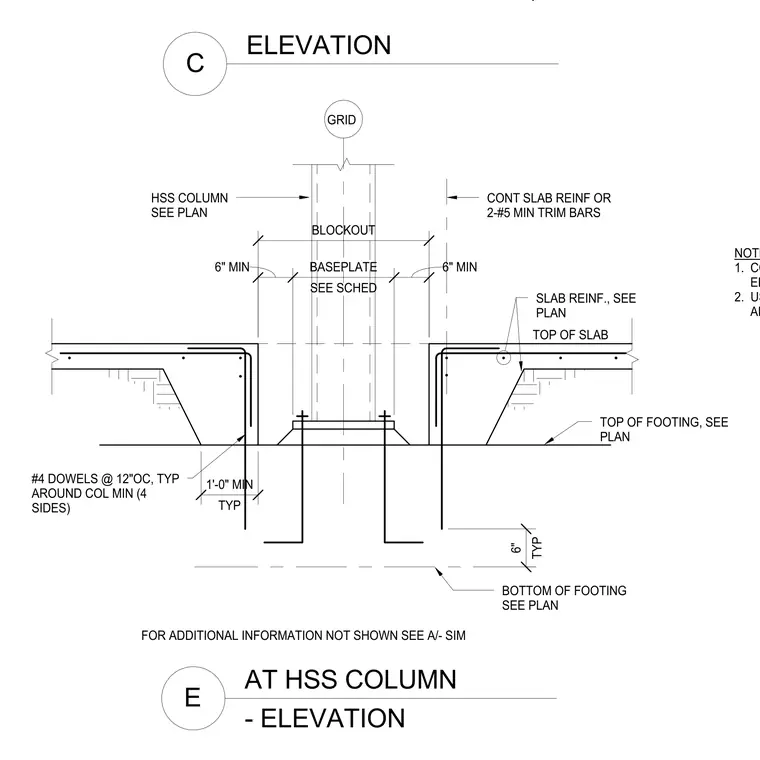

This elevation detail shows a hollow structural section column supported by a base plate sized per schedule, set atop a concrete footing with anchor bolts. A column blockout is provided to allow the slab on grade to be poured before erection of the columns. Number four dowels are spaced at twelve inches on center around all four sides of the column minimum, supplemented by continuous slab reinforcement or two number five minimum trim bars. Additional slab reinforcement is placed as sized per plan at the top of the slab, with a six inch minimum dimension maintained at the blockout edges.
- ELEVATION AT HSS COLUMN E ELEVATION C NOTES: 1. COLUMN BLOCKOUTS SHALL BE USED WHEN SLAB ON GRADE IS POURED BEFORE ERECTION OF COLUMNS. 2. USE TYPICAL DETAILS AFTER ERECTION OF COLUMNS. FOR ADDITIONAL INFORMATION NOT SHOWN SEE A/- SIM #4 DOWELS @ 12"OC, TYP AROUND COL MIN (4 SIDES) BOTTOM OF FOOTING SEE PLAN CONT SLAB REINF OR 2-#5 MIN TRIM BARS TOP OF SLAB SLAB REINF., SEE PLAN TOP OF FOOTING, SEE PLAN HSS COLUMN SEE PLAN BLOCKOUT TYP 6" TYP 1'-0" MIN GRID 6" MIN SEE SCHED BASEPLATE 6" MIN
