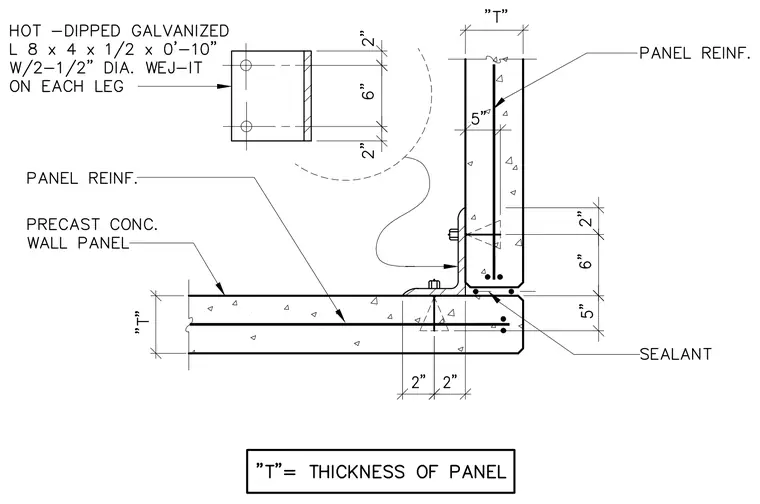

Precast concrete wall panels intersect at a corner with an interior hot-dipped galvanized angle measuring 8 by 4 by 1/2 inches by 0 feet 10 inches long. The angle connects to each concrete panel using two 1/2-inch diameter Wej-It expansion anchors on each leg. Panel reinforcement consists of steel bars embedded within the precast concrete thickness 'T'. A sealant joint fills the exterior corner gap between the abutting precast panels.
