Structural · S-ZBXRK

Steel Beam to Embed Plate Connection

Materials

Steel

Elements

Walls Anchors / Embeds Connections / Plates

Connections

Bolted Connection Embed Plate Expansion / Slip Connection

About this detail

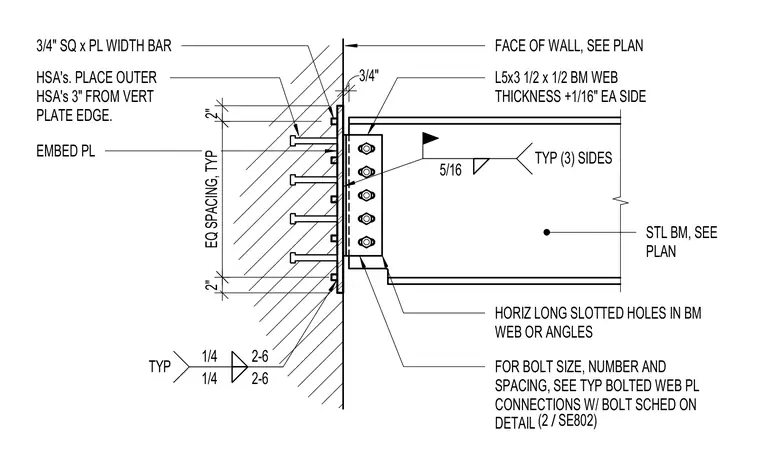

A structural steel beam connects to a vertical embed plate cast into the face of a concrete wall using double L5x3 1/2 x 1/2 angles welded to the beam web with five-sixteenths-inch fillet welds on three sides. Horizontal long slotted holes are provided in the beam web or angles with bolt size, number, and spacing per the typical bolted web plate connection schedule on detail 2/SE802. The embed plate features headed stud anchors placed with outer anchors three inches from the vertical plate edge and equal spacing between intermediate anchors. A three-quarter-inch square by plate width bar is welded to the embed plate with quarter-inch fillet welds.
