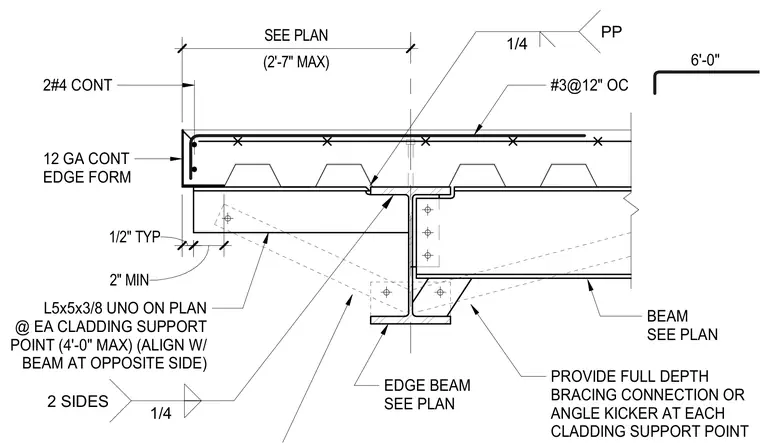

A concrete slab on metal deck bears over a structural steel edge beam with continuous twelve-gauge edge formwork at the perimeter. Two continuous number four rebars run along the edge, complemented by number three rebars spaced at twelve inches on center maximum. An L5x5x3/8 angle bracket connects at each cladding support point spaced at a four-foot maximum and aligns with the beam on the opposite side. A quarter-inch two-sided weld secures the assembly with half-inch typical clearances and two-inch minimums. A full-depth bracing connection or angle kicker is provided at each cladding support point.
6'-0" 2#4 CONT L5x5x3/8 UNO ON PLAN @ EA CLADDING SUPPORT POINT (4'-0" MAX) (ALIGN W/ BEAM AT OPPOSITE SIDE) 12 GA CONT EDGE FORM EDGE BEAM SEE PLAN BEAM SEE PLAN #3@12" OC (2'-7" MAX) SEE PLAN 1/4 PP 1/2" TYP 1/4 2 SIDES 2" MIN PROVIDE FULL DEPTH BRACING CONNECTION OR ANGLE KICKER AT EACH CLADDING SUPPORT POINT
