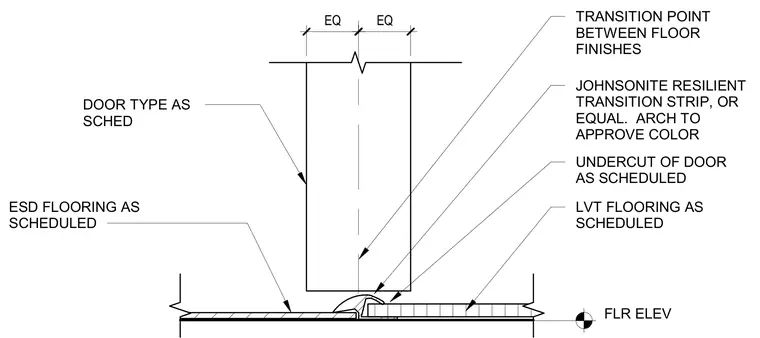

A Johnsonite resilient transition strip, or approved equal, bridges the transition point between ESD flooring and LVT flooring at the underside of a door. The color of the transition strip is subject to architectural approval. The door is undercut as scheduled to clear the floor finishes, aligning with the floor elevation datum.
EQ EQ DOOR TYPE AS SCHED JOHNSONITE RESILIENT TRANSITION STRIP, OR EQUAL. ARCH TO APPROVE COLOR UNDERCUT OF DOOR AS SCHEDULED LVT FLOORING AS SCHEDULED FLR ELEV ESD FLOORING AS SCHEDULED TRANSITION POINT BETWEEN FLOOR FINISHES
