Structural · S-ZBSHK

Cantilever Beam Connection at Steel Beam

Materials

weld

Elements

Beams Connections / Plates

Connections

Shear Tab / Single Plate Welded Connection Bolted Connection

About this detail

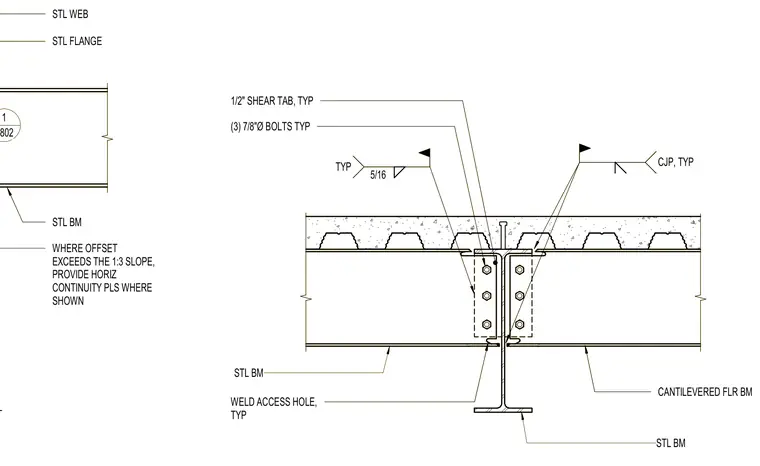

A cantilevered steel floor beam frames into a supporting steel beam using a half-inch thick shear tab welded to the support. Three seven-eighths-inch diameter bolts secure the beam web to the shear tab. Complete joint penetration welds connect the steel beam flanges, supplemented by a five-sixteenth-inch fillet weld at the connection. Weld access holes are detailed at the beam web-to-flange intersections. Where vertical offsets exceed a one-to-three slope, horizontal continuity plates are provided.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
