A structural steel column base plate measuring two feet one inch by one foot eight inches with a thickness of two inches and a yield strength of fifty ksi rests over four anchor bolts designated as four AB five with half-inch by four-inch by four-inch plate washers. A gusset plate connects to the column flange where applicable with a half-inch fillet weld or per AISC minimum requirements, while a quarter-inch fillet weld ties the column web and flanges typically. The column size and orientation are sized per plan and referenced from the column schedule.

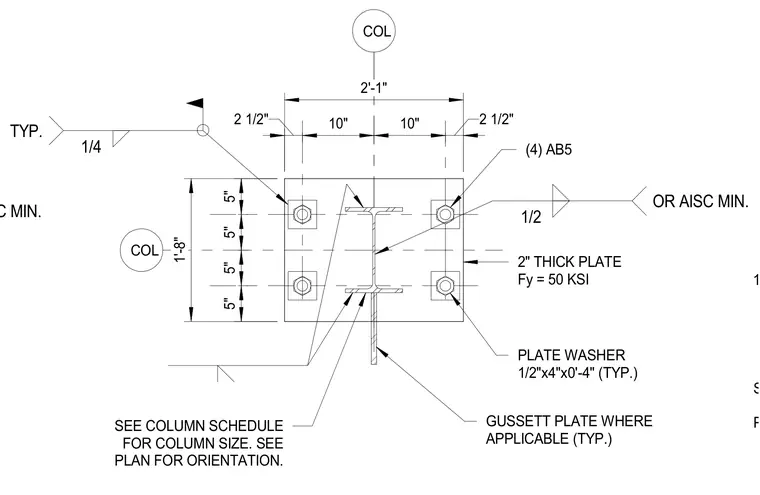

SEE COLUMN SCHEDULE PLAN FOR ORIENTATION. 1 1/2" THICK PLATE OR AISC MIN. 2" THICK PLATE Fy = 50 KSI (4) AB5 PLATE WASHER 1/2"x4"x0'-4" (TYP.) 1'-8" 5" 5" 5" 5" 2'-1" COL COL 1/4 TYP. 2 1/2" 10" 10" 2 1/2" GUSSETT PLATE WHERE APPLICABLE (TYP.) SEE COLUMN SCHEDULE FOR COLUMN SIZE. SEE PLAN FOR ORIENTATION. 1/2 OR AISC MIN.
