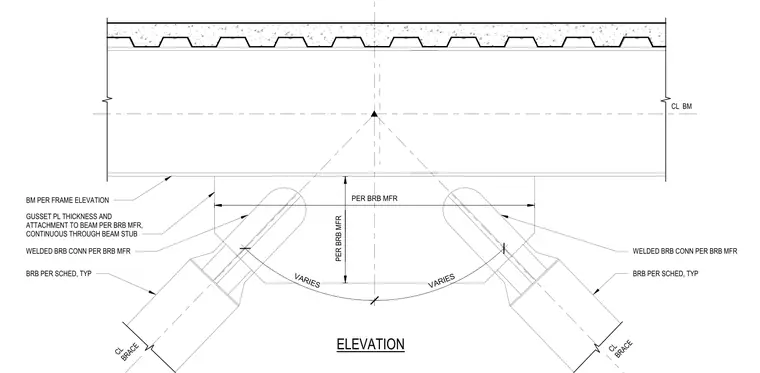

This assembly features a gusset plate connection for buckling restrained braces (BRB) attached to the underside of a steel beam. The beam supports a metal deck floor system. The gusset plate thickness and its attachment to the beam are specified per the buckling restrained brace manufacturer, with the plate continuing through a beam stub. The buckling restrained brace connections are welded per the manufacturer's requirements. The brace members are sized per the structural schedule, with the geometry and dimensions varying based on the specific frame configuration.
