Structural · S-ZBKJ7

Roof Overhang at Double Wall

Materials

Steel Timber / Wood

Elements

Beams Walls Roofs Decks Arches Bracing Connections / Plates

Connections

Bracing Connection Welded Connection Deck Attachment Timber / Mass-Timber Connection

About this detail

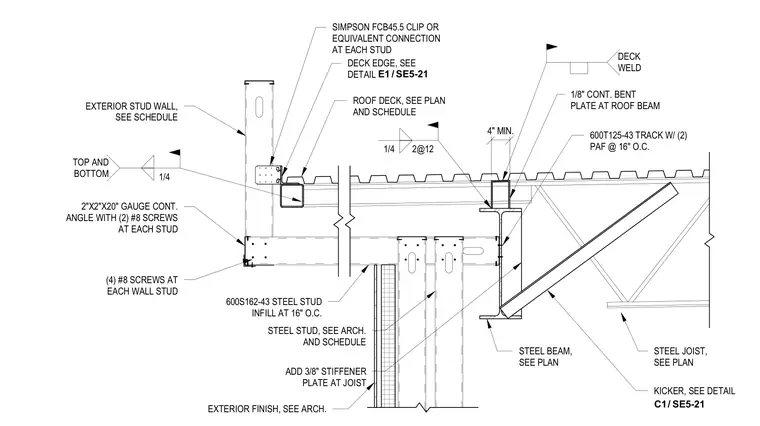

A roof overhang connection features a double steel stud wall supported by cold-formed steel framing and structural steel members. The exterior stud wall incorporates 600S162-43 steel studs spaced at sixteen inches on center, secured at the base with a continuous two-by-two by twenty-gauge angle and two number eight screws per stud. A Simpson FCB45.5 clip or equivalent connection ties each stud to the roof deck edge. The roof deck bears on a steel beam and a steel joist, which is reinforced with a three-eighths-inch stiffener plate. A continuous one-eighth-inch bent plate is welded to the roof beam with quarter-inch welds at twelve inches on center. A diagonal kicker brace ties back to the steel joist, anchored using track framing secured with powder-actuated fasteners at sixteen inches on center top and bottom.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
