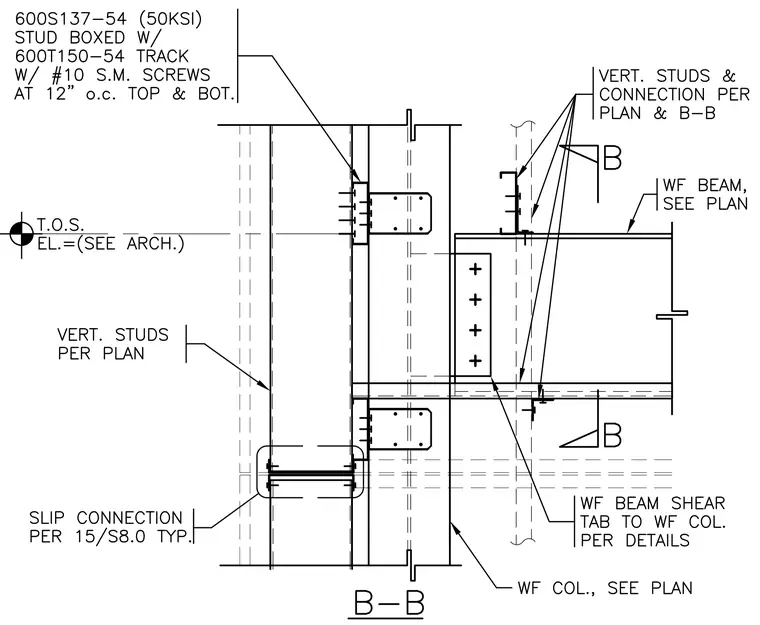

A wide flange beam intersects a wide flange column with a shear tab connection sized per plan. Cold-formed steel vertical studs utilize 600S137-54 members boxed with 600T150-54 track, fastened with number ten sheet metal screws at twelve inches on center at the top and bottom. A slip connection is detailed per sheet 15/S8.0 typically. Additional vertical studs and connections are installed per plan and section B-B.
