Structural · S-ZBCSW

Haunched Wide Flange Beam Connection and Reinforcement

Materials

About this detail

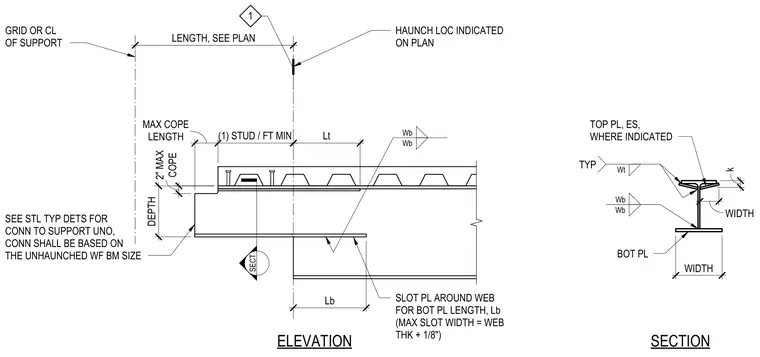

A wide flange steel beam features a haunched profile at the support with a maximum two-inch cope and a slotted plate at the web for the bottom plate length. Top plates are provided on each side where indicated, welded to the top flange. Shear studs are spaced at one per foot minimum along the composite metal deck above. Connections to the support follow standard structural details based on the unhaunched wide flange beam size unless otherwise noted.
