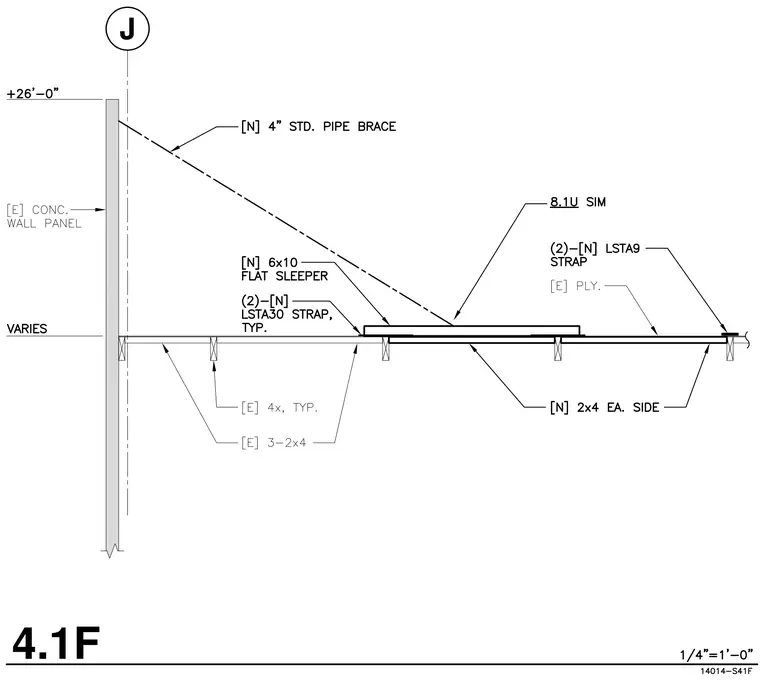

An existing concrete wall panel connects to a new four-inch standard pipe brace sloping up to a height of twenty-six feet. The pipe brace ties into a new six-by-ten flat sleeper bearing on existing framing. Two new LSTA30 straps connect the framing, and two new LSTA9 straps tie into existing plywood sheathing with new two-by-fours installed on each side.
