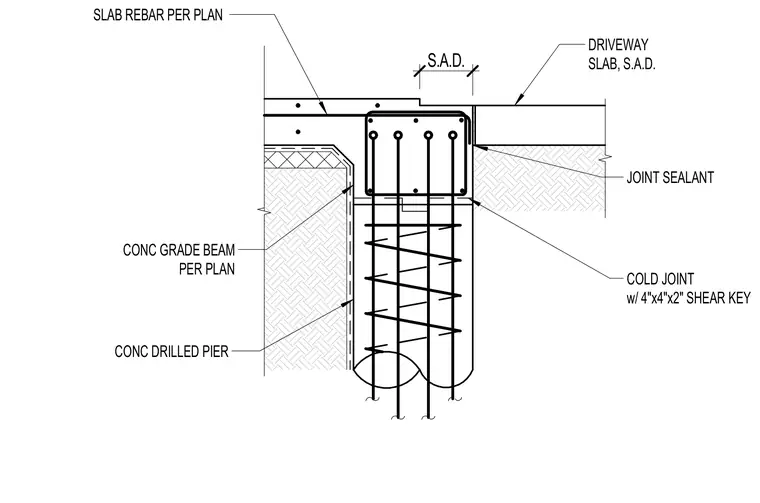

A reinforced concrete driveway slab bears adjacent to a concrete grade beam supported by a concrete drilled pier. The cold joint between the grade beam and the pier incorporates a 4-inch by 4-inch by 2-inch shear key. Slab rebar is placed per plan within the concrete elements. A joint sealant is provided at the interface between the driveway slab and the grade beam assembly.
CONC DRILLED PIER CONC GRADE BEAM PER PLAN S.A.D. DRIVEWAY SLAB, S.A.D. JOINT SEALANT SLAB REBAR PER PLAN COLD JOINT w/ 4"x4"x2" SHEAR KEY
