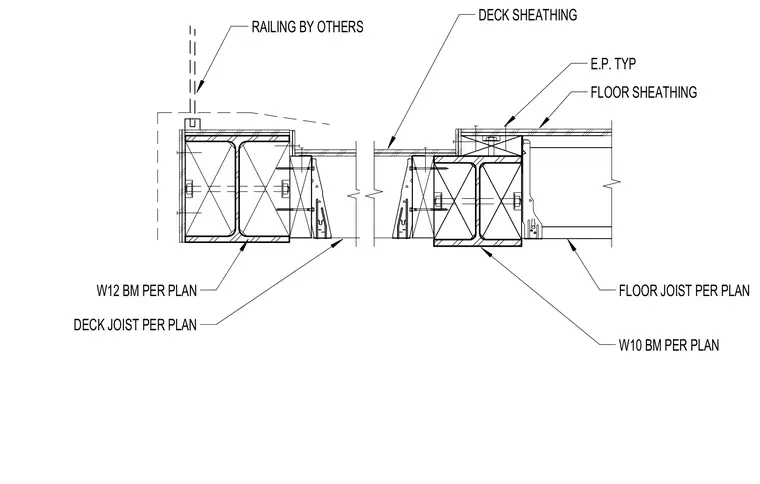

Floor framing with wood joists supported by wide-flange steel beams sized per plan. Deck joists and floor joists frame into the steel members, supporting deck sheathing and floor sheathing above. A railing by others is mounted at the edge condition over a W12 beam.
FLOOR JOIST PER PLAN W10 BM PER PLAN RAILING BY OTHERS W12 BM PER PLAN DECK JOIST PER PLAN FLOOR SHEATHING DECK SHEATHING E.P. TYP
