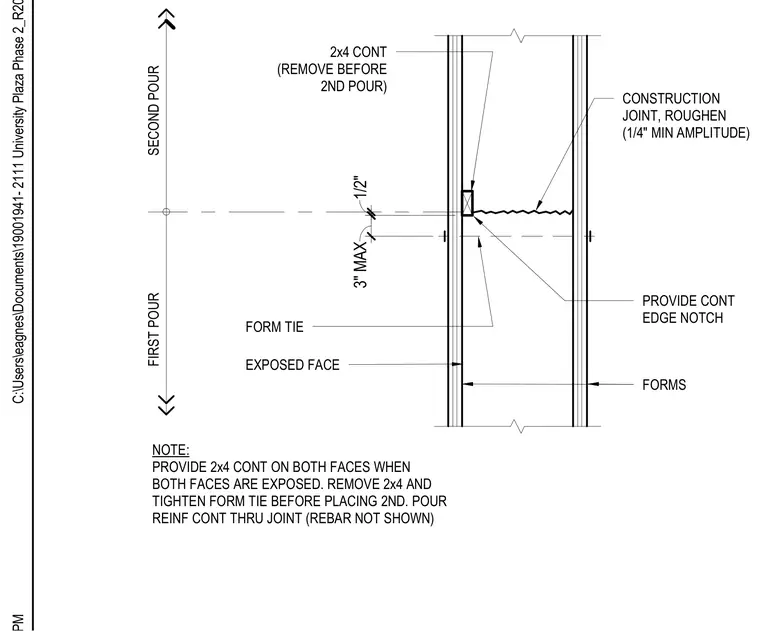

A horizontal construction joint occurs in a reinforced concrete wall between a first and second concrete pour. The joint interface features a roughened surface with a one-quarter-inch minimum amplitude and a continuous edge notch to ensure shear transfer. A continuous two-by-four wood strip is positioned at the form line and must be removed before placing the second pour. Form ties span across the wall assembly between formwork panels on both exposed faces. Reinforcing steel continues through the joint continuously.
SECOND POUR FIRST POUR 2x4 CONT (REMOVE BEFORE 2ND POUR) CONSTRUCTION JOINT, ROUGHEN (1/4" MIN AMPLITUDE) PROVIDE CONT EDGE NOTCH FORM TIE EXPOSED FACE FORMS NOTE: PROVIDE 2x4 CONT ON BOTH FACES WHEN BOTH FACES ARE EXPOSED. REMOVE 2x4 AND TIGHTEN FORM TIE BEFORE PLACING 2ND. POUR REINF CONT THRU JOINT (REBAR NOT SHOWN) 1/2" 3" MAX C:\Users\eagnes\Documents\19001941- 2111 University Plaza Phase 2_R20_eagnes.rvt
