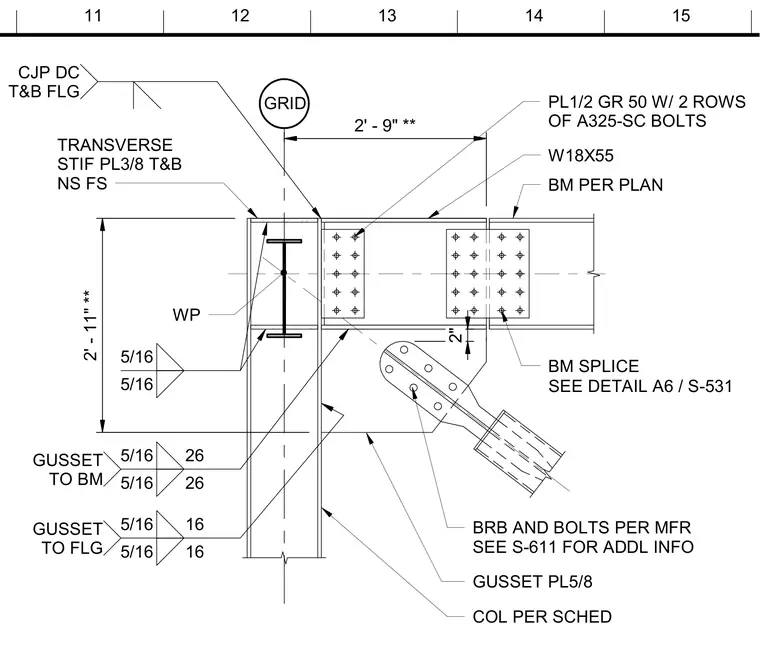

This structural connection features a buckling-restrained brace (BRB) attached via a five-eighth-inch gusset plate welded to a W18x55 beam and a structural steel column per schedule. The beam connects to the column through a beam splice plate that is half-inch Grade 50 steel secured with two rows of A325-SC bolts. Three-eighth-inch transverse stiffener plates are welded to the top and near side, far side flanges with five-sixteenth-inch fillet welds. The gusset plate is welded to the beam and column flange using five-sixteenth-inch fillet welds with specified lengths. A complete joint penetration weld with backing bar connects the top and bottom flanges.
BRB AND BOLTS PER MFR SEE S-611 FOR ADDL INFO WP BM PER PLAN COL PER SCHED GRID GUSSET PL5/8 W18X55 5/16 26 5/16 26 GUSSET TO BM 2' - 9" ** 2' - 11" ** 5/16 16 5/16 16 GUSSET TO FLG 2" BM SPLICE SEE DETAIL A6 / S-531 CJP DC T&B FLG PL1/2 GR 50 W/ 2 ROWS OF A325-SC BOLTS TRANSVERSE STIF PL3/8 T&B NS FS 5/16 5/16 11 13 15 12 14
