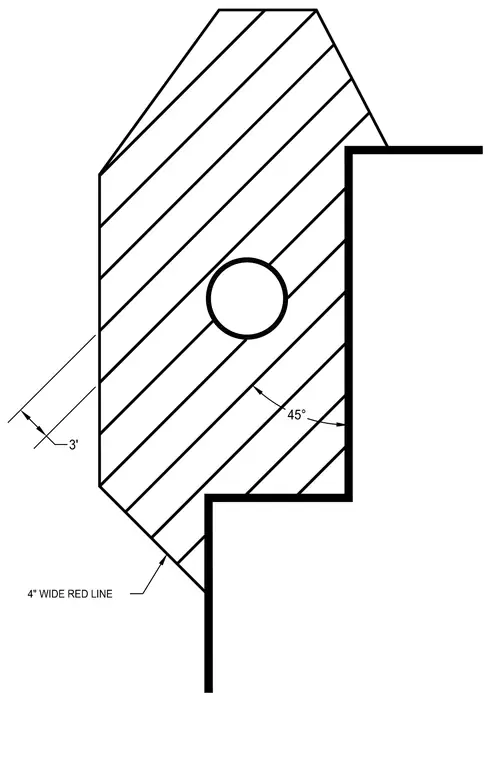

A structural bridge zone assembly features a hatched member with a central circular opening. A four-inch wide red line is designated at a forty-five-degree angle. A dimensional clearance of three feet is indicated along the boundary.
