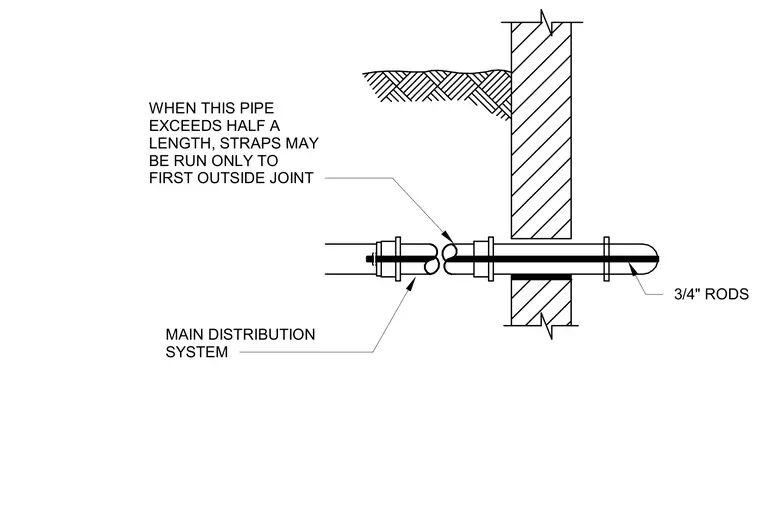

A main distribution system pipe penetrates through a wall opening and is secured with three-quarter-inch rods. When this pipe exceeds half a length, straps may be run only to the first outside joint. The assembly details seismic bracing constraints and strap placement relative to the wall penetration.
WHEN THIS PIPE EXCEEDS HALF A LENGTH, STRAPS MAY BE RUN ONLY TO FIRST OUTSIDE JOINT MAIN DISTRIBUTION SYSTEM 3/4" RODS
